Hydraulic Top Link Cat. 2-2 with Locking Block 22 3/8” - 33 1/2 I84302
Hydraulic Top Link Cat. 2-2 with Locking Block 22 3/8” - 33 1/2 I84302

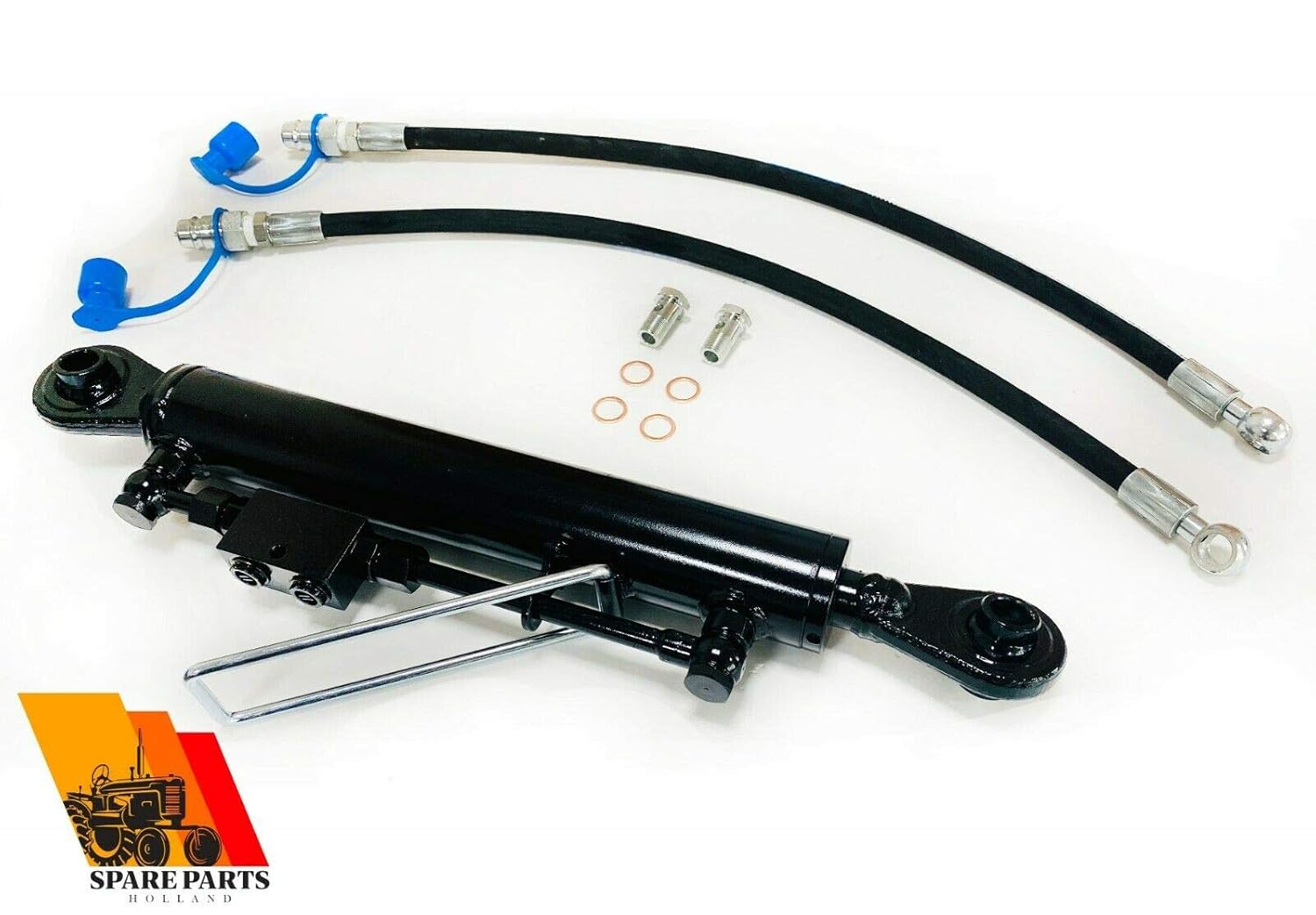

Including Hoses, Male Couplers with dust cover, Banjo Bolts,Washers

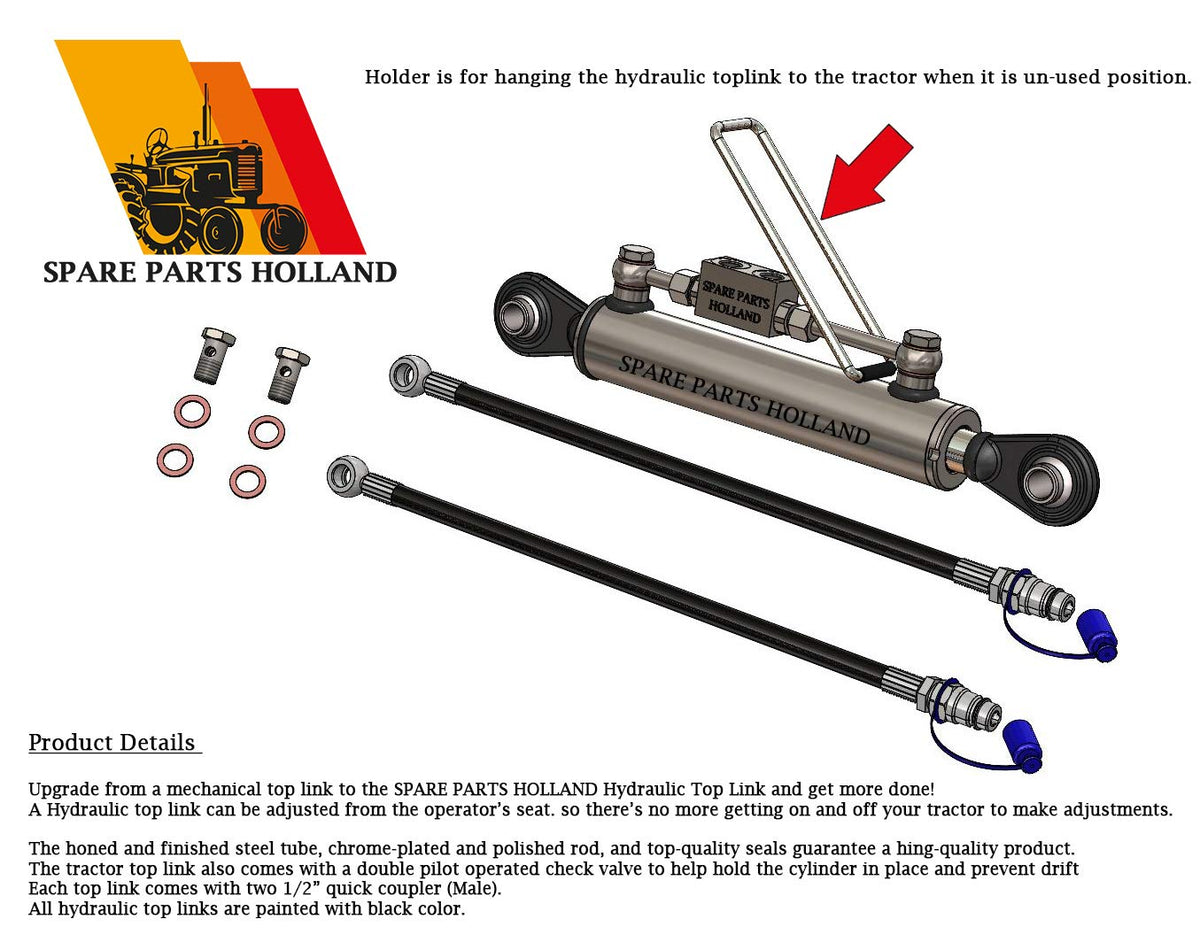

Holder to hold the unit when it is un-used
The piston rod can be rotated as needed
This top link is equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve
Painted Black Color (Rarely paint damages & Scratches during cargo)

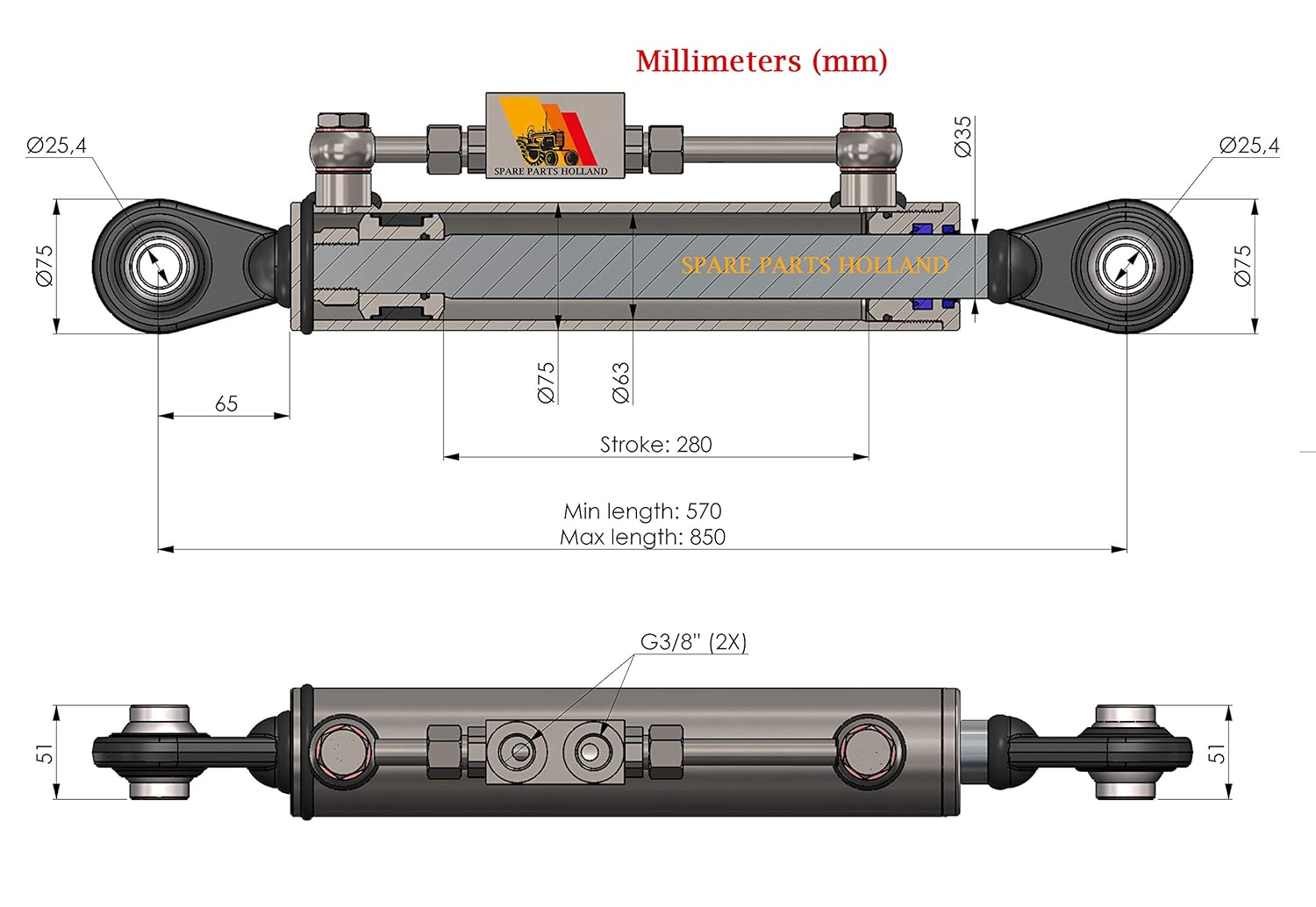

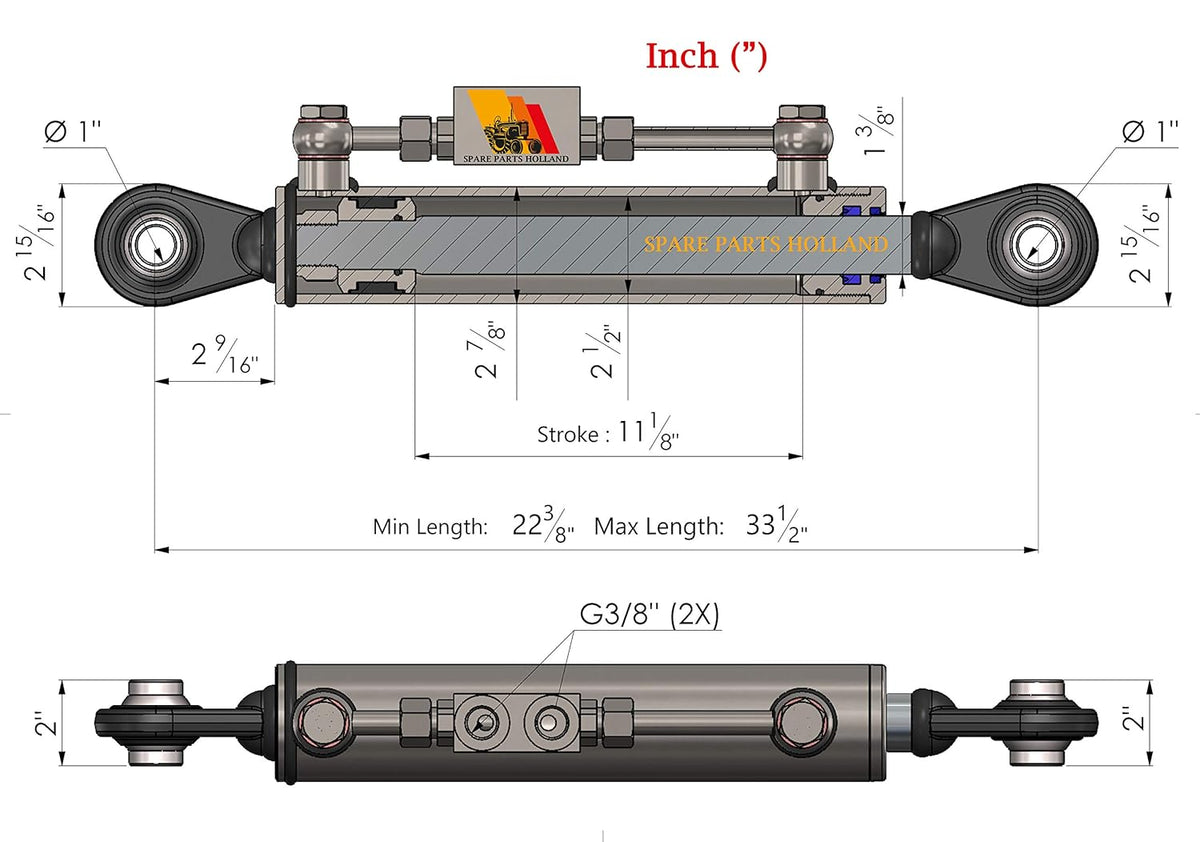

Hydraulic Top Link Cat. 2-2 With Locking Block 22 3/8” - 33 1/2 With 2 x Hose Description: The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this - an unbeatable combination in combination with the integrated locking block *. * When adjusting the upper link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor's control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted. Furnishing: High quality and workmanship and painted Incl. Locking block Top link cat. 2 2x hydraulic connection Delivery is completely assembled Technical specifications: Hydraulic connection: 3/8 ' E: 570-850 mm A: 63 mm W: 73 mm C: 35 mm M: 75 mm N: 51mm H: 25.4 mm F: 65 mm D: 280 mm (stroke) Hydraulic pressure max. 200 bar Thrust: 4 to Pulling force: 2.5 to Weight about 13 kg + 2 x hydraulic hose with plug and dust cover Technical specifications: Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330 Operating pressure: 330 bar Length: 75 cm
