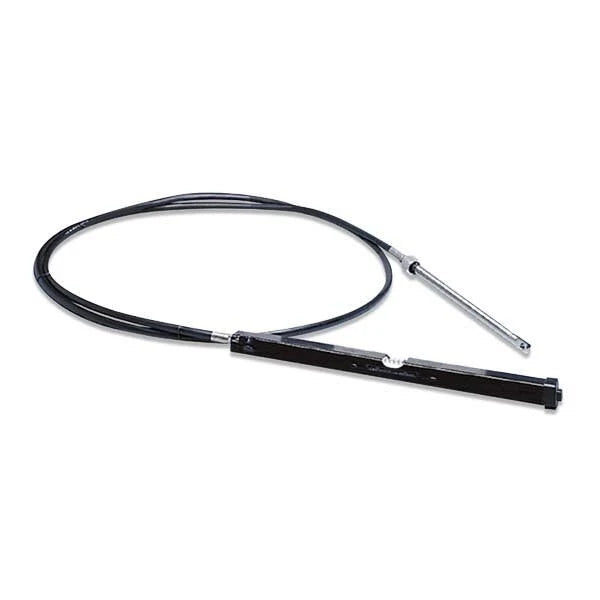

SSC13034 Steering Cable D848
Sale price
$24.99
Regular price $98.67
Skip to product information
Rack replacement cable for the Morse 300619 cable used on the Command 200 rack steering system helms. - The following helms are now obsolete: 300252, 300853, 310992, 310993, 910994, and 310995. How to Measure - How to Measure Steering Cables "Measure Twice. Order Once." Replacement of Existing Cable: If possible, find the part number stamped on the plastic jacket of the old cable. If you removed the old cable, measure for the replacement cable as follows:For Rack Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket ("Y" dimension shown in above drawing) in inches, add 30′′, and round up to next foot. Order that length cable. New Installation: Measure cable routing path from wheel center line to engine connection, as follows: A = Center line of wheel to gunwale (or deck, if routed downward), B = Dash to transom, C = Gunwale to centerline of cable connection at centered tiller. - For Cable Installations through the Engine Tilt Tube: Add A, B & C + 6′′, then round up to the next foot. Order that length cable. - For Cables Mounted to Transom, Splashwell or Stringer: Add A, B & C, then subtract 6′′ and round up to the next foot. Order that length cable. - TYPICAL SINGLE STATION ROUTING A single-cable, starboard drive push-pull mechanical cable system is shown in this diagram. - Cable routings (such as those found on pontoon boats) may vary from this drawing. Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.
